J Series® 3030S 3V & 6V LEDs

March 31, 2026

Higher performance. Seamless compatibility. More design flexibility.

J Series® 3030S 3V & 6V LEDs: Now in Pro9™ 80 & 90 CRI Versions

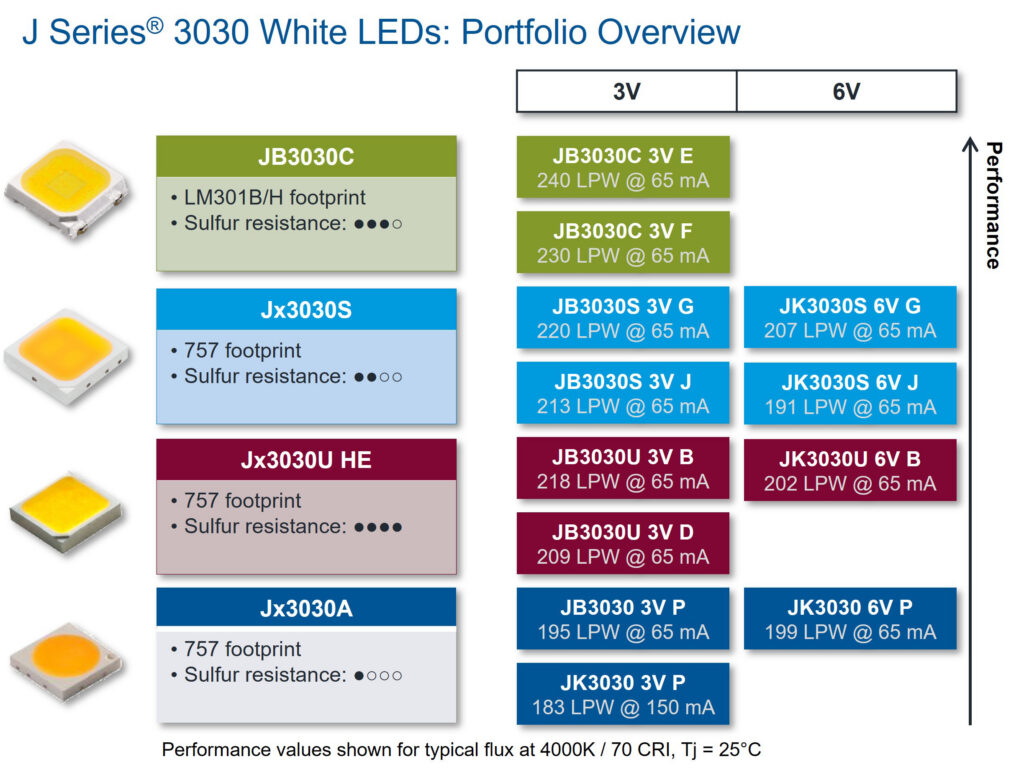

Cree LED is expanding the proven J Series 3030 portfolio with four new high-performance LEDs that combine a 757-footprint with outstanding efficacy and drop-in compatibility with popular Samsung 3030 LEDs.

Key Benefits

  • Expanded 3030 Portfolio: New 3V and 6V options in a 757-footprint for higher performance

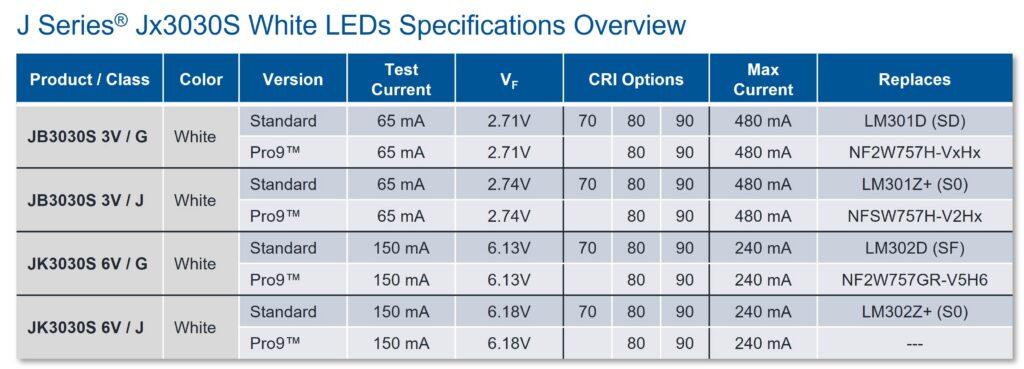

  • Seamless Samsung Compatibility: Direct replacement for LM30xD & LM30xZ+ parts, with matching flux bins, chromaticity bins and kitting
  • Excellent Efficacy: Up to 220 LPW (JB3030S 3V G Class) and 207 LPW (JK3030S 6V G Class) at 65 mA for Standard versions

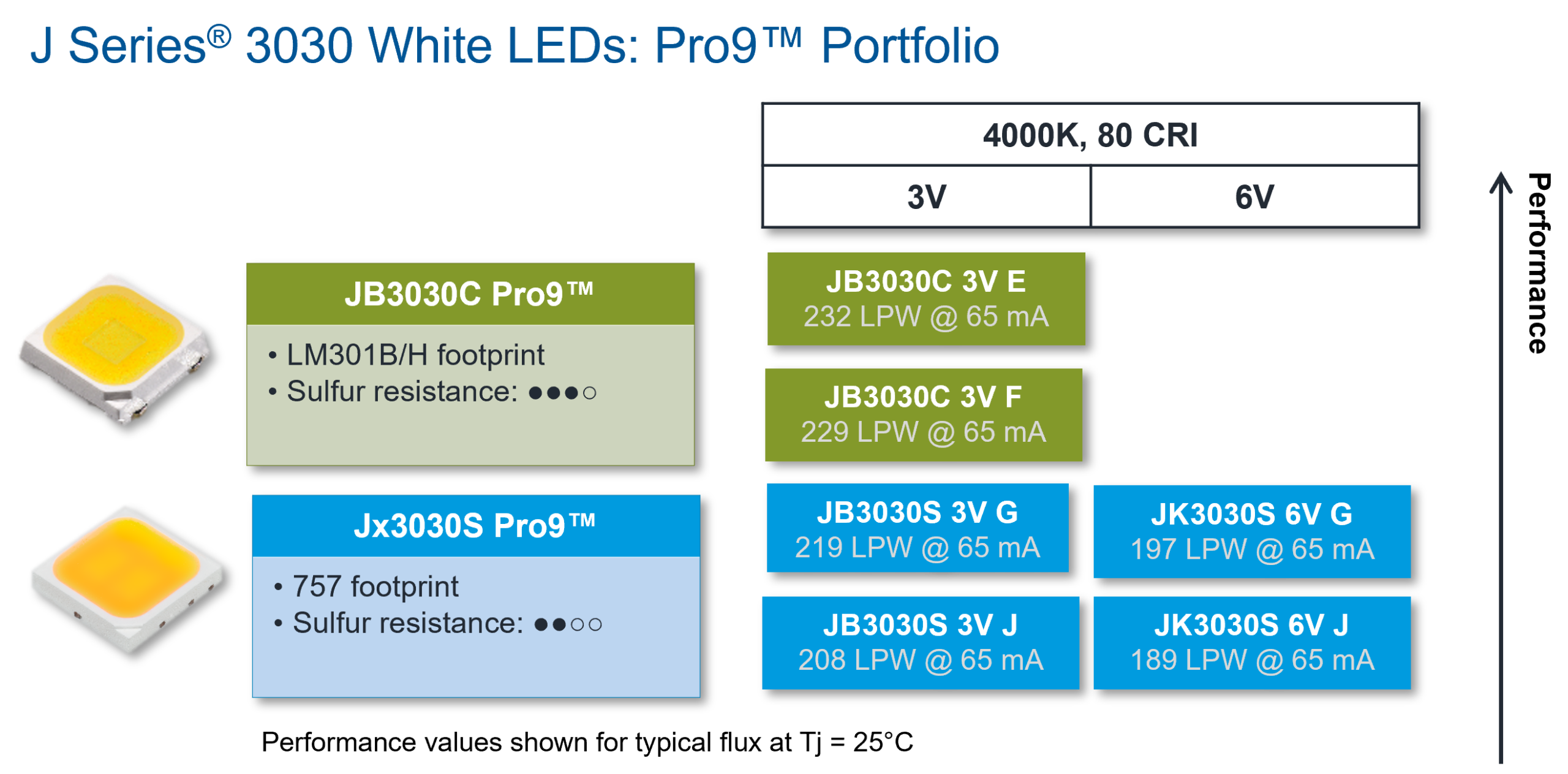

  • Pro9 LPW Boost for Warm CCTs & High CRI: Up to 28% higher LPW than Standard versions; JB3030S 3V G Class delivers typical 219 LPW at 4000K, 80 CRI and typical 207 LPW at 3000K, 90 CRI
  • Flexible Design Choices: Two performance options (G Class & J Class) for each voltage class
  • Proven Reliability: Immediate LM-80 coverage with reported L90 >100,000 hrs lifetime

Pro9 Version Target Applications
Optimized for indoor applications that require the highest levels of efficacy, light quality and reliability:

  • Indoor commercial
  • Hotels & hospitality
  • Offices
  • Retail

Pro9 Version Available in:

  • 6500K–2700K CCT
  • 80 & 90 CRI options
  • Standard 3.0 × 3.0 mm package, 757-compatible footprint

Standard Version Target Applications
Designed for lighting that must perform in demanding environments:

  • Outdoor area lighting
  • Industrial facilities such as factories, warehouses and processing plants
  • Harsh-environment indoor spaces – hot, dirty or unconditioned air
  • Outdoor industrial spaces and building exteriors

Standard Version Available in:

  • 6500K–2700K CCT
  • 70, 80 & 90 CRI options
  • Standard 3.0 × 3.0 mm package, 757-compatible footprint

Why Upgrade to J Series 3030S?

With improved price-performance, unmatched efficacy and direct compatibility with 757- and Samsung-based designs, the J Series 3030S makes it easy to enhance performance without redesigning your board. Whether it’s lighting massive outdoor areas or the most demanding indoor spaces, these LEDs deliver long-lasting, efficient light exactly where it’s needed.

Samples Available Now
Order today to start testing in your next design. Production quantities ship with standard lead times.

Product Resources
J Series® 3030S Data Sheet
J Series® 3030S Pro9 Data Sheet
J Series® 3030S Product Selector
J Series® LEDs Feature Sheet
Outdoor Lighting Application Page
Indoor Lighting Application Page
