XLamp® XFL LEDs

Breakthrough Lumens and Throw for Portable Applications

XLamp XFL LEDs are a flashlight-optimized product family with breakthrough lumens, throw & value. The XFL LED family delivers unrivaled performance: with up to a 90% smaller light emitting surface compared to competitors, they deliver more precise beam shapes, less color variation and a longer throw distance.

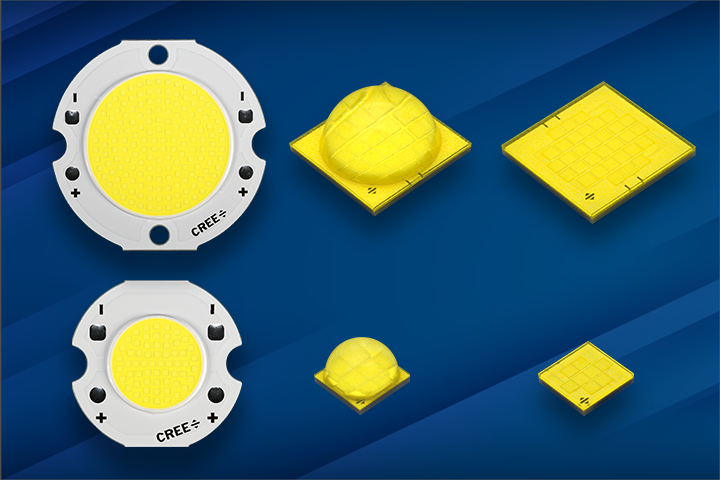

  • XLamp XFL COB Family LEDs
    • Five different versions, targeting 5000 to 20,000 lm flashlight applications
    • Simplify the design and assembly of flashlights with an integrated substrate

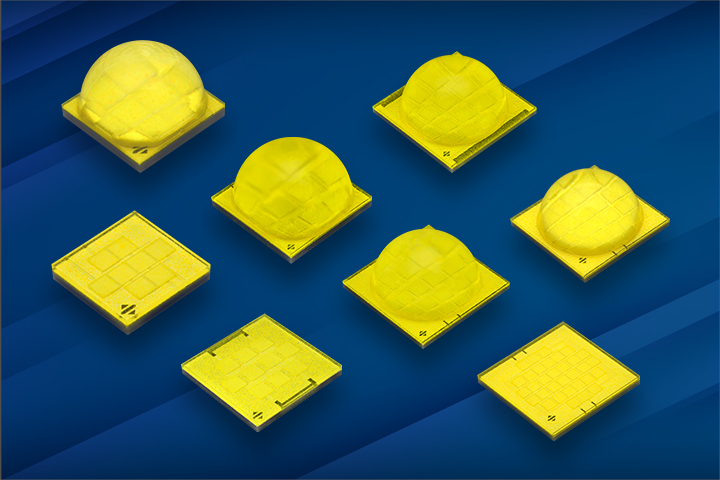

  • XLamp XFL SMD Family LEDs
    • Five different versions, targeting 3000 to 12,000 lm flashlight applications

Specifications

View All
Product Type Product Data Sheet Product Status Color Voltage Class Optical Characteristic CCT Min (K) CCT Max (K) CRI Options Max Lumens LES Size (mm) Max Current (A) Max Power (W)
SMD Ceramic
XFL03K
New New White 6 High Intensity 5000 6500 <70 5490 3.5 10.000 74
SMD Ceramic
XFL03K
New New White 3 High Intensity 5000 6500 <70 5490 3.5 20.000 74
SMD Ceramic
XFL03K
New New White 6 High Density 5000 6500 <70 5940 4.3 10.000 74
SMD Ceramic
XFL03K
New New White 3 High Density 5000 6500 <70 5940 4.3 20.000 74
SMD Ceramic
XFL05K
New New White 6 High Density 5000 6500 70, 80 9168 6 15.000 107
SMD Ceramic
XFL05K
New New White 6 High Intensity 5000 6500 70 8801 5 15.000 107
SMD Ceramic
XFL05K
New New White 3 High Density 5000 6500 70 9168 6 30.000 107
SMD Ceramic
XFL05K
New New White 3 High Intensity 5000 6500 70 8801 5 30.000 107
SMD Ceramic
XFL08K
New New White 6 High Density 5000 6500 70 15672 8.5 27.000 195
SMD Ceramic
XFL08K
New New White 6 High Intensity 5000 6500 70 15045 7.5 27.000 195
SMD Ceramic
XFL10K
New New White 6 High Intensity 5000 6500 70 17425 7 32.000 224
SMD Ceramic
XFL10K
New New White 6 High Density 5000 6500 70 18151 9 32.000 224
SMD Ceramic
XFL12K
New New White 6 High Density 5000 6500 <70 20427 9 32.000 253
SMD Ceramic
XFL12K
New New White 6 High Intensity 5000 6500 <70 19135 7.7 32.000 253
COB Metal
XFLC05
New New White 3 Round LES 5700 6500 <70 8711 14 24.000 73
COB Metal
XFLC05
New New White 6 Round LES 5700 6500 <70 8711 14 12.000 73
COB Metal
XFLC08
New New White 6 Round LES 5700 6500 <70 10086 15 14.000 85
COB Metal
XFLC10
New New White 6 Round LES 5700 6500 <70 11167 18 16.000 98
COB Metal
XFLC15
New New White 6 Round LES 5700 6500 <70 15969 20 22.000 134
COB Metal
XFLC20
New New White 6 Round LES 5700 6500 <70 22922 24 32.000 195

Documentation
Version
Last Updated

XLamp® XFL COBs Data Sheet

2A 07 Jul 2026

XLamp® XFL White LEDs Data Sheet

4A 04 Dec 2025
Version
Last Updated

XLamp XFL COBs [Feature Sheet]

0 30 Jun 2026

XLamp® White LEDs [Feature Sheet]

45 26 May 2026

XLamp® Portable LEDs [Feature Sheet]

17 16 Mar 2026

LED Products and Application Guide

13 06 Nov 2025
Version
Last Updated

XLamp XFL LEDs [RoHS]

02 Apr 2024
Version
Last Updated

XLamp® XFL LED Flashlight Retrofit

0 13 May 2024
Version
Last Updated

XLamp XFL Family [REACH]

250 12 Sep 2025
Version
Last Updated

XLamp XFL LED Soldering & Handling

3B 04 Dec 2025

XLamp® LED Reliability Overview

9A 04 Dec 2025
Version
Last Updated

XFLC05 White [Optical Model]

3850

XFLC08 White [Optical Model]

3848

XFLC10 White [Optical Model]

3739

XFLC15 White [Optical Model]

3851

XFLC20 White [Optical Model]

3849

XFL08K HD White [Optical Model]

2622

XFL08K HI White [Optical Model]

2898

XFL10K HD White [Optical Model]

C112

XFL10K HI White [Optical Model]

2897
Version
Last Updated

XFL10K Electrical Model [SPICE]

1 01 Jun 2024

3D STEP Models – All XLamp® LEDs

01 Jul 2026
