XLamp® XP-G3 & XP-G4 LEDs

New flux bin options offer even better optical performance and efficacy

Cree LED has introduced XLamp XP-G3 S Line and XP-G4 White LEDs that are now brighter, with new minimum flux bin options for drop-in increases of output and efficacy. XP-G4 LEDs incorporate the latest advancements in high-power LED technology for improved optical performance while delivering industry leading efficacy. XP-G3 S Line LEDs remain a popular choice for long-lifetime, highly efficient outdoor lighting due to its efficacy and best-in-class sulfur resistance.

Better Performance Options for XP-G3 White S Line LEDs

XP-G3 White S Line LEDs lead the industry for efficacy and reliability, featuring excellent corrosion resistance and better system reliability through switching and dimming cycles. XP-G3 S Line LEDs feature LM-80 coverage with Reported L90 lifetimes up to >121,000 hours.

New flux bin options are available for XLamp XP-G3 White S Line LEDs at 70 CRI, providing efficacy of up to 225 LPW at 350 mA, 25°C.

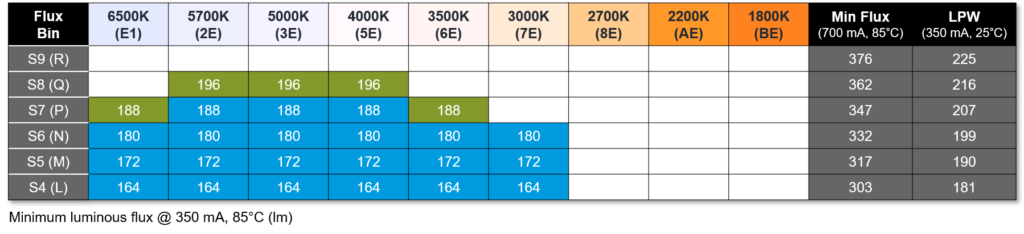

New flux bin options for XLamp^® XP-G3 White S Line LEDs at 70 CRI

Better Performance Options for XP-G4 White LEDs

XP-G4 White LEDs are the latest generation in the popular XPG product family, featuring optical and performance improvements:

Higher intensity & less color-over-angle than the previous generation XP-G3 White LEDs
LM-80 coverage with Reported L90 lifetimes up to >145,000 hours
3A max current, the highest available in this performance class
High Intensity version

In addition, XP-G4 White LEDs provide the widest range of phosphor options available on a single-die high-power LED, including Standard, Broadcast and Pro9™ versions:

The Standard version works best for many applications, including outdoor, torch and specialty
The Broadcast version is optimized for stadium, arena and medical applications where extremely high TLCI is required
The Pro9™ version delivers breakthrough efficacy for applications that require high fidelity 90 & 95 CRI, such as indoor directional and retail

New flux bin options are available for XLamp XP-G4 White Standard LEDs at 70 CRI, providing efficacy of up to 220 LPW at 350 mA, 25°C.

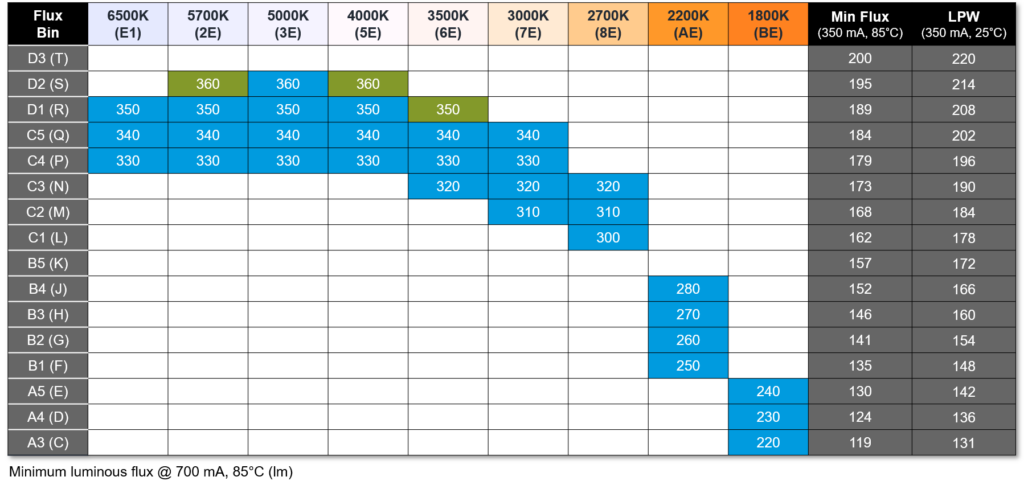

New flux bin options for XLamp^® XP-G4 White Standard LEDs at 70 CRI
