Additional information

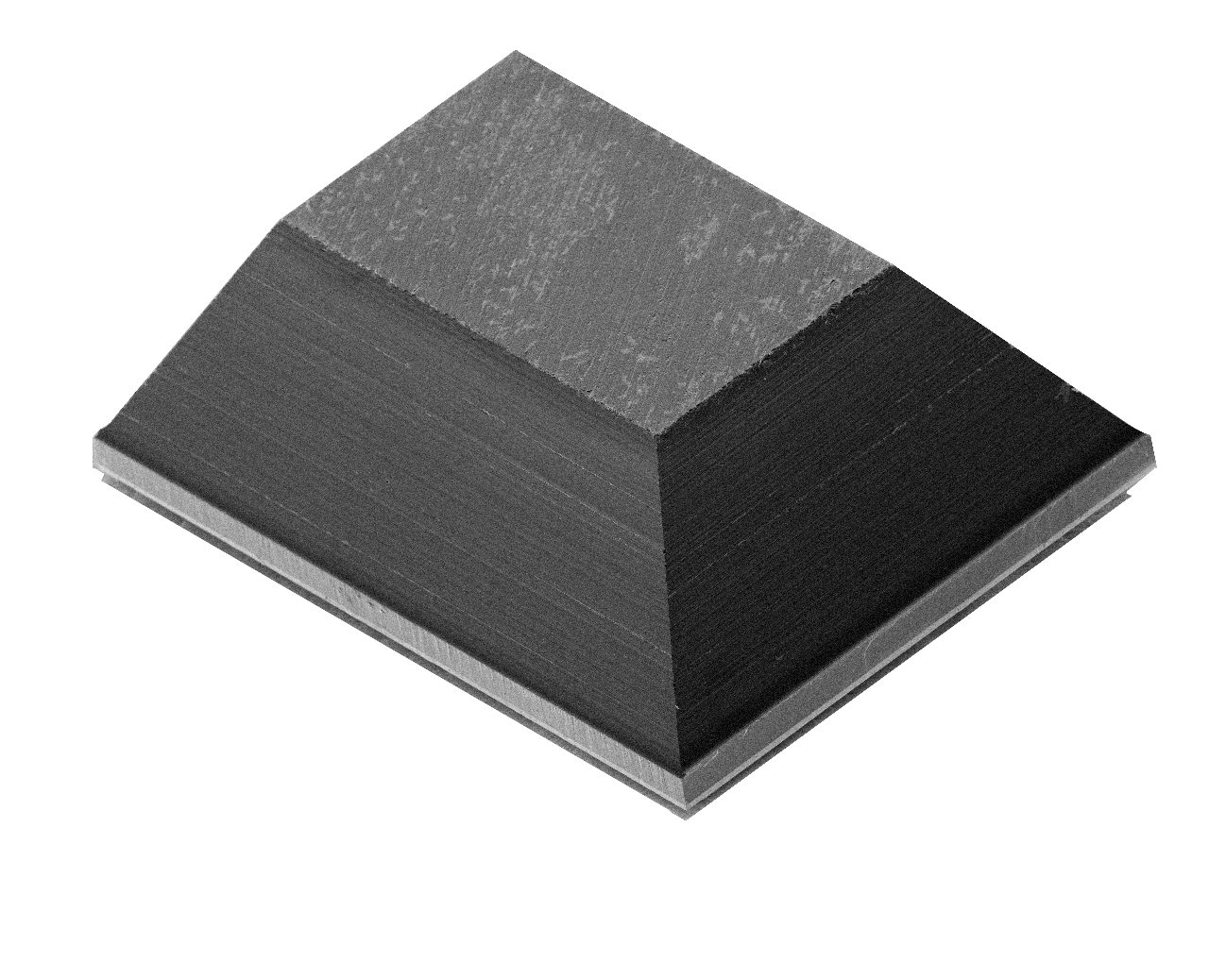

| Product Type | LED Chip |
|---|---|
| Data Sheet | https://downloads.cree-led.com/files/ds/c/Chips-DA2432.pdf |
| Product Family | Chips DA |
| Product Status | Discontinued |
| Voltage Class | 3 |
| Color | Royal |
| Color Spec Type | DWL (nm) |
| Color Spec Min | 445 |
| Color Spec Max | 465 |
| CRI Options | — |
| Optical Char | — |
| Current Binning | 0.020 |
| Temp Binning | 25 |
| Vf Typical | 3.1 |
| Vf Max | 3.4 |
| Power Typical | 0.1 |
| ESD | 2kV |
| Optical Units | mW |
| Optical Bin Min | 30 |
| Current Max | 0.100 |
| Conductive Epoxy | Optional |
| Clear Epoxy | Not Recommended |
| Eutectic Attach | Recommended |
| Ingress Protection | N/A |
| Orientation | BP Down |
| Physical Units | µm |
| X | 240 |
| Y | 320 |
| EOL Effective Date | 2022-05-18 |
| Last Purchase Date | 2022-06-01 |
| EOL Notification | https://downloads.cree-led.com/files/da/eol/CreeLED-PCN-5319-EOL-all-DA-LED-chips.pdf |
| Recommended Substitute | N/A |
