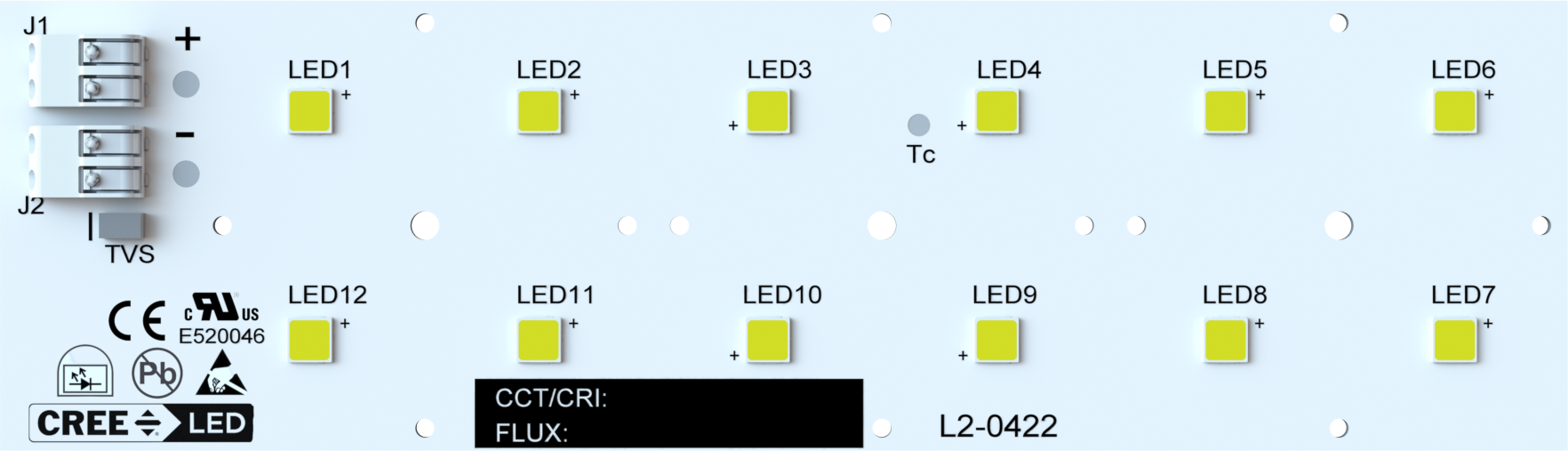

Additional information
| Product Type | L2 Array |
|---|---|
| Data Sheet | https://downloads.cree-led.com/files/ds/l2/L2-LS12.pdf |
| Product Family | L2 LS |
| Product Status | New |
| Voltage Class | 36 |
| Color | White |
| Viewing Angle | 120° |
| Color Spec Type | CCT (K) |
| Color Spec Min | 2700 |
| Color Spec Max | 5000 |
| CRI Options | 70 |
| Optical Char | — |
| Current Binning | 1.050 |
| Temp Binning | 60 |
| Vf Typical | 34.3 |
| Power Typical | 36 |
| Optical Units | Lm |
| Typ Lm 4000K-70 | 6636 |
| Typ LPW 4000K-70 | 184 |
| Current Max | 2.000 |
| Power Max | 72 |
| Physical Units | mm |
| X | 174 |
| Y | 50 |
| Footprint Type | N/A |
| LED Count | 12 |
| Populated LED | 5050B 6V K Class |
