Additional information

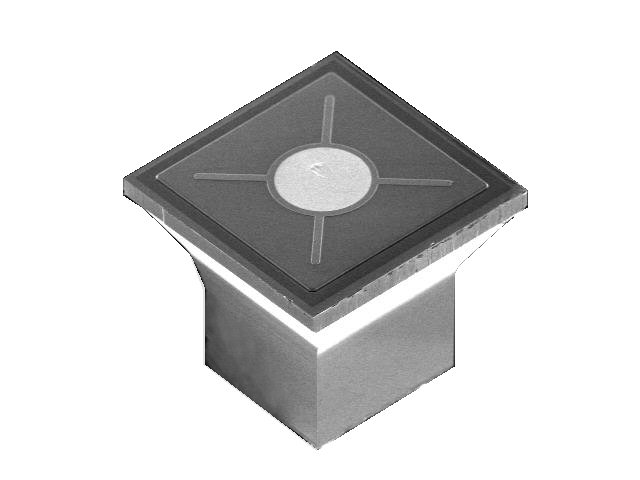

| Product Type | LED Chip |
|---|---|
| Data Sheet | https://downloads.cree-led.com/files/ds/c/Chips-MB290.pdf |
| Product Family | Chips MB |
| Product Status | NFND |
| Voltage Class | 3 |
| Color | Royal |
| Color Spec Type | DWL (nm) |
| Color Spec Min | 445 |
| Color Spec Max | 465 |
| CRI Options | — |
| Optical Char | — |
| Current Binning | 0.020 |
| Temp Binning | 25 |
| Vf Typical | 3.2 |
| Vf Max | 3.7 |
| Power Typical | 0.1 |
| ESD | 2kV |
| Optical Units | mW |
| Optical Bin Min | 12 |
| Current Max | 0.030 |
| Conductive Epoxy | Recommended |
| Clear Epoxy | Not Recommended |
| Eutectic Attach | Not Recommended |
| Ingress Protection | N/A |
| Orientation | p-up, Vertical |
| Physical Units | µm |
| X | 300 |
| Y | 300 |
