Additional information

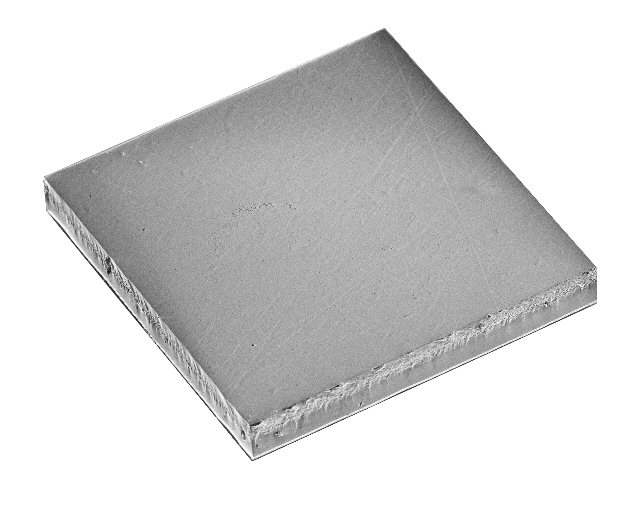

| Product Type | LED Chip |
|---|---|
| Data Sheet | https://downloads.cree-led.com/files/ds/c/Chips-SA1000-EBP.pdf |
| Product Family | Chips SA |
| Sub-App-Auto | Auto Exterior |
| Product Status | Active |
| Voltage Class | 3 |
| Color | Royal |
| Color Spec Type | DWL (nm) |
| Color Spec Min | 445 |
| Color Spec Max | 455 |
| CRI Options | — |
| Optical Char | — |
| Current Binning | 0.350 |
| Temp Binning | 25 |
| Vf Typical | 2.9 |
| Vf Max | 3.1 |
| Power Typical | 1 |
| ESD | 250V |
| Optical Units | mW |
| Optical Bin Min | 510 |
| Current Max | 1.500 |
| Conductive Epoxy | Optional |
| Clear Epoxy | Do Not Use |
| Eutectic Attach | Recommended |
| Ingress Protection | N/A |
| Orientation | BP Down |
| Physical Units | µm |
| X | 1000 |
| Y | 1000 |
