Level 2 Solutions

Fully populated LED PCBAs are now available directly from Cree LED, an industry leader in LED technology for lighting applications. Level 2 Solutions provide a complete solution from one supplier for the highest level of support and quality.

With Level 2 Solutions, Cree LED can support customer manufacturing demand around the world to meet the changing demands of the lighting market and the challenges of an uncertain future.

Standard L2 Products

Standard L2 products are stocked through the same distribution channels as our LED components, with low to no minimum quantity requirements.

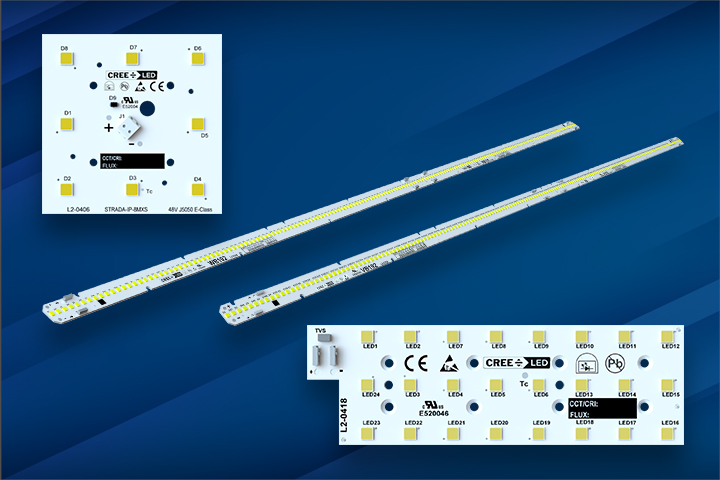

  • L2 Linear: two variations of linear PCBAs with J Series® 2835 White LEDs, targeting indoor lighting applications, including troffers, panel lights and cove lighting
  • L2 Array: five variations of array PCBAs with J Series 5050 White LEDs, targeting outdoor lighting applications, such as streetlights

Custom L2 Manufacturing

Custom L2 solutions are available for larger manufacturers that want more options and support for manufacturing their PCBAs. Designs can incorporate any combination of XLamp® and J Series LEDs, multiple channels and other more advanced design techniques. Optional design services and product compliance support services are also available.

Specifications

View All
Product Type Product Family Product Product Page Data Sheet Product Status LED Count Populated LED Voltage Class CCT Min (K) CCT Max (K) CRI Options Typical Power (W) Max. Power (W) x (mm) y (mm)
L2 Array Standard L2 Array
LS12
New New 12 5050B 6V K Class 36 2700 5000 70 36 72 174 50
L2 Array Standard L2 Array
LS12
New New 12 5050B 6V H Class 36 2700 5000 70 38 72 174 50
L2 Array Standard L2 Array
LS12
New New 12 5050C 6V E Class 36 2700 5000 70 36 72 174 50
L2 Array Standard L2 Array
LS12P
New New 12 5050B 6V K Class 36 2700 5000 70 36 72 147 45
L2 Array Standard L2 Array
LS12P
New New 12 5050B 6V H Class 36 2700 5000 70 38 72 147 45
L2 Array Standard L2 Array
LS12P
New New 12 5050C 6V E Class 36 2700 5000 70 36 72 147 45
L2 Array Standard L2 Array
LS16
New New 16 5050B 6V K Class 48 2700 5000 70 48 96 225 50
L2 Array Standard L2 Array
LS16
New New 16 5050B 6V H Class 48 2700 5000 70 50 96 225 50
L2 Array Standard L2 Array
LS16
New New 16 5050C 6V E Class 48 2700 5000 70 48 96 225 50
L2 Array Standard L2 Array
LS24
New New 24 5050B 6V K Class 48 2700 5000 70 63 144 148 47
L2 Array Standard L2 Array
LS24
New New 24 5050B 6V H Class 48 2700 5000 70 66 144 148 47
L2 Array Standard L2 Array
LS24
New New 24 5050C 6V E Class 48 2700 5000 70 63 144 148 47
L2 Array Standard L2 Array
LS8
New New 8 5050C 6V E Class 48 2700 5000 70 18 48 70 70
L2 Array Standard L2 Array
LS8
New New 8 5050B 6V K Class 48 2700 5000 70 18 48 70 70
L2 Array Standard L2 Array
LS8
New New 8 5050B 6V H Class 48 2700 5000 70 19 48 70 70
L2 Linear Standard L2 Linear
VB192
New New 96 2835 3V G Class Pro9 48 3000 5000 90 26 66 1120 20
L2 Linear Standard L2 Linear
VB192
New New 192 2835 3V G Class Pro9 48 3000 5000 90 52 132 1120 20
L2 Linear Standard L2 Linear
VB192
New New 96 2835 3V J Class 48 3000 5000 80, 90 26 66 1120 20
L2 Linear Standard L2 Linear
VB192
New New 192 2835 3V J Class 48 3000 5000 80, 90 52 132 1120 20
L2 Linear Standard L2 Linear
VB192
New New 96 2835 3V N Class 48 3000 5000 80, 90 26 66 1120 20
