Standard L2 Array

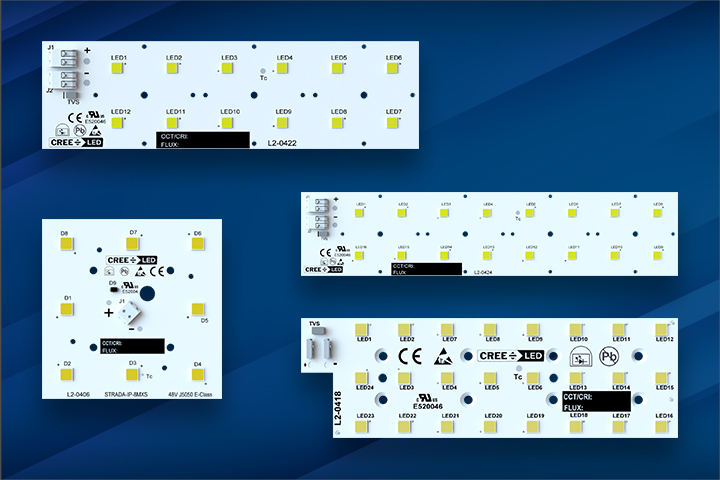

Cree LED’s Standard L2 Array modules are engineered for outdoor lighting applications such as streetlighting. Featuring J Series® 5050 White LEDs, these array PCBAs deliver consistent performance, flexible design options and multiple price-performance configurations.

Key Features

  • Five MCPCB options designed for easy integration
  • 3 LED choices for different price-performance options
  • TVS diode for protection against high-voltage transients
  • Available in 5000K, 4000K, 3000K & 2700K CCTs at 70 CRI

Array Products

  • LS8: 70 x 70 mm MCPCB with 8 J Series 5050 LEDs
  • LS12: 174 x 50 mm MCPCB with 12 J Series 5050 LEDs
  • LS12P: 147 x 45 mm MCPCB with 12 J Series 5050 LEDs
  • LS16: 225 x 80 mm MCPCB with 16 J Series 5050 LEDs
  • LS24: 148 x 47 mm MCPCB with 24 J Series 5050 LEDs

Benefits

  • Streamlined integration for OEM fixture designs
  • Cost-effective options to meet a range of performance needs
  • High uniformity and reliable thermal performance

Specifications

View All
Product Type Product Data Sheet Product Status LED Count Populated LED Voltage Class CCT Min (K) CCT Max (K) CRI Options Typical Power (W) Max. Power (W) x (mm) y (mm)
L2 Array
LS12
New New 12 5050C 6V E Class 36 2700 5000 70 36 72 174 50
L2 Array
LS12
New New 12 5050B 6V H Class 36 2700 5000 70 38 72 174 50
L2 Array
LS12
New New 12 5050B 6V K Class 36 2700 5000 70 36 72 174 50
L2 Array
LS12P
New New 12 5050C 6V E Class 36 2700 5000 70 36 72 147 45
L2 Array
LS12P
New New 12 5050B 6V H Class 36 2700 5000 70 38 72 147 45
L2 Array
LS12P
New New 12 5050B 6V K Class 36 2700 5000 70 36 72 147 45
L2 Array
LS16
New New 16 5050C 6V E Class 48 2700 5000 70 48 96 225 50
L2 Array
LS16
New New 16 5050B 6V H Class 48 2700 5000 70 50 96 225 50
L2 Array
LS16
New New 16 5050B 6V K Class 48 2700 5000 70 48 96 225 50
L2 Array
LS24
New New 24 5050C 6V E Class 48 2700 5000 70 63 144 148 47
L2 Array
LS24
New New 24 5050B 6V H Class 48 2700 5000 70 66 144 148 47
L2 Array
LS24
New New 24 5050B 6V K Class 48 2700 5000 70 63 144 148 47
L2 Array
LS8
New New 8 5050C 6V E Class 48 2700 5000 70 18 48 70 70
L2 Array
LS8
New New 8 5050B 6V H Class 48 2700 5000 70 19 48 70 70
L2 Array
LS8
New New 8 5050B 6V K Class 48 2700 5000 70 18 48 70 70
