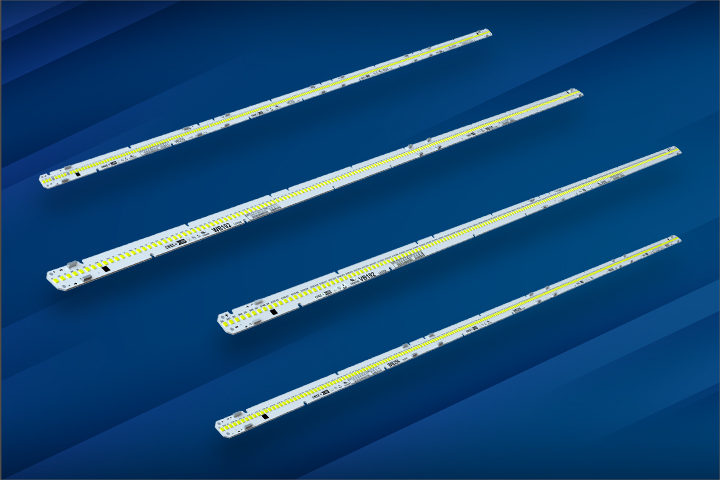

Standard L2 Linear

Cree LED’s Standard L2 Linear modules are engineered for indoor lighting applications such as troffers, panel lights and cove lighting. Featuring J Series® 2835 White LEDs, these linear PCBAs deliver consistent performance, flexible design options and multiple price-performance configurations.

Key Features

  • Two linear FR4 PCB options designed for easy integration
  • Available in 5000K, 4000K, 3500K and 3000K CCTs
  • 80 CRI and 90 CRI performance options
  • Choose from five LED configurations to match efficiency and cost targets
  • Poke-in connectors on each section end for fast assembly

VB256

  • Dimensions: 1120 mm (44″) × 20 mm FR4
  • LED Counts: 256, 128 or 64
  • Modular Design: Cuttable into two 560 mm (22″) sections or four 280 mm (11″) sections

VB192

  • Dimensions: 1120 mm (44″) × 20 mm FR4
  • LED Counts: 192 or 96
  • Modular Design: Cuttable into two 560 mm (22″) sections

Benefits

  • Streamlined integration for OEM fixture designs
  • Cost-effective options to meet a range of performance needs
  • High uniformity and reliable thermal performance
  • Flexible cuttable formats to reduce inventory complexity

Specifications

View All
Product Type Product Data Sheet Product Status LED Count Populated LED Voltage Class CCT Min (K) CCT Max (K) CRI Options Typical Power (W) Max. Power (W) x (mm) y (mm)
L2 Linear
VB192
New New 192 2835 3V N Class 48 3000 5000 80, 90 52 132 1120 20
L2 Linear
VB192
New New 96 2835 3V N Class 48 3000 5000 80, 90 26 66 1120 20
L2 Linear
VB192
New New 192 2835 3V J Class 48 3000 5000 80, 90 52 132 1120 20
L2 Linear
VB192
New New 96 2835 3V J Class 48 3000 5000 80, 90 26 66 1120 20
L2 Linear
VB192
New New 192 2835 3V G Class Pro9 48 3000 5000 90 52 132 1120 20
L2 Linear
VB192
New New 96 2835 3V G Class Pro9 48 3000 5000 90 26 66 1120 20
L2 Linear
VB256
New New 256 2835 3V N Class 48 3000 5000 80, 90 88 176 1120 20
L2 Linear
VB256
New New 128 2835 3V N Class 48 3000 5000 80, 90 44 88 1120 20
L2 Linear
VB256
New New 64 2835 3V N Class 48 3000 5000 80, 90 22 44 1120 20
L2 Linear
VB256
New New 256 2835 3V J Class 48 3000 5000 80, 90 88 176 1120 20
L2 Linear
VB256
New New 128 2835 3V J Class 48 3000 5000 80, 90 44 88 1120 20
L2 Linear
VB256
New New 64 2835 3V J Class 48 3000 5000 80, 90 22 44 1120 20
L2 Linear
VB256
New New 256 2835 3V G Class Pro9 48 3000 5000 90 88 176 1120 20
L2 Linear
VB256
New New 128 2835 3V G Class Pro9 48 3000 5000 90 44 88 1120 20
L2 Linear
VB256
New New 64 2835 3V G Class Pro9 48 3000 5000 90 22 44 1120 20

Documentation
Version
Last Updated

L2 VB192 & VB256 Data Sheet

3 16 Sep 2025
