XLamp® XP-G4 High Intensity LEDs

February 1, 2024

Ideal for Indoor directional, aftermarket auto and portable flashlights/torches

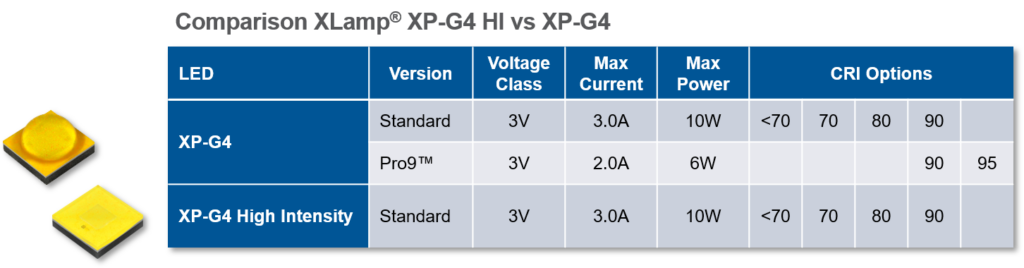

XLamp® XP-G4 High Intensity LEDs provide a new, higher performance option in the small LES XLamp LED portfolio, delivering up to 1,017 lm from a 1.4 x 1.4 mm LES.

Featuring higher light output and efficacy than existing options with the same LES size in the XLamp portfolio, XP-G4 HI LEDs are optimized for maximum performance in a one-to-one optic configuration. XP-G4 HI LEDs feature the familiar XP 3.45 mm footprint with a large neutral thermal pad and very low thermal resistance.

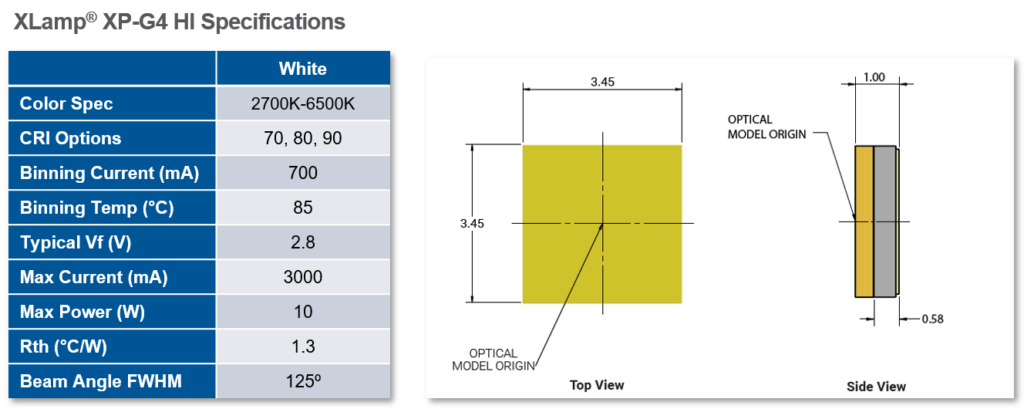

Product Features

  • Available in 2700K-6500K CCTs
  • <70, 70, 80 & 90 CRI options available
  • Max lumens 1,017 lm @ 3A
  • 3.45 x 3.45 mm package size

Target Applications

Optimized for a wide range of directional lighting applications:

  • Indoor directional
  • Aftermarket auto
  • Flashlights/torches (portable)

Product Resources
XLamp® XP-G4 HI LEDs Product Selector
XLamp® XP-G4 LEDs Data Sheet
XLamp® White LEDs Feature Sheet
