XLamp® XP-L Color LEDs

June 25, 2024

New XLamp® XP-L Color LEDs enable smaller, lower profile color-mixing luminaires

XLamp® XP-L Color LEDs are multi-color RGBW LEDs that deliver the combination of high lumen output and great color mixing in a small 3.45 x 3.45 mm package. These LEDs feature the smallest possible distance between LED die, creating a small optical source for excellent optical control and efficient color mixing.


  • New price-performance option for XLamp RGBW LEDs
  • 33% smaller LES than the existing XLamp XM-L Color Gen 2 LEDs

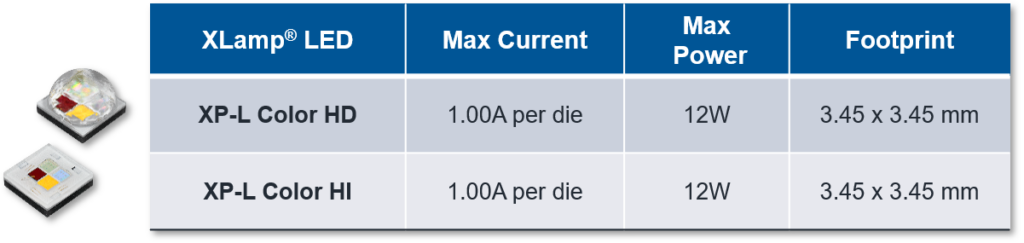

  • Offered in High Density and High Intensity options with the same footprint
  • Maximum drive current per LED die: 1A
  • Individually addressable LEDs
  • LM-80 data available to validate long-term reliability

XLamp XP-L Color LEDs are optimized for all high-performance RGBW lighting applications, including color-changing, stage, architectural and entertainment.

XLamp® XP-L Color RGBW LEDs

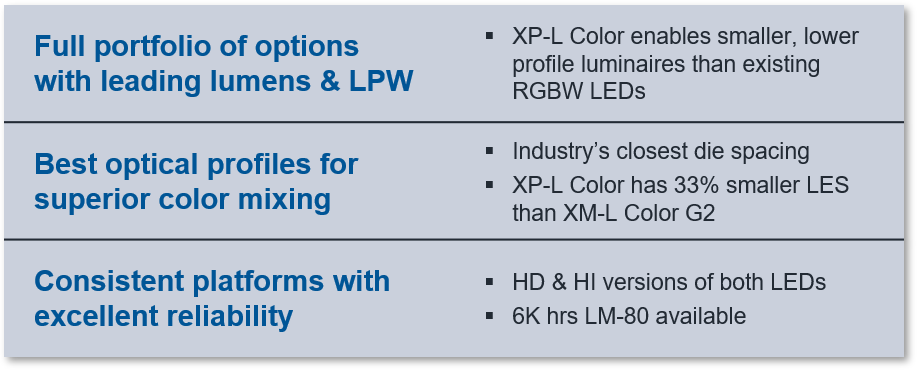

Benefits XLamp® XP-L Color RGBW LEDs

XLamp® XP-L Color LEDs: Value of Smaller LES

Product Resources
XLamp® XP-L Data Sheet
XLamp® XP-L Product Selector
Architecture & Entertainment Applications
Color LED Portfolio Feature Sheet
XLamp® XP-L Color Technical Brief
